Lisuan Tech LX Series Specs Confirmed: Ultra, Pro, Max, and 7G100 Gaming Card
Saturday, March 14, 2026Key Takeaways
- Branding Shift: Lisuan Tech transitions from internal codenames (7G105/7G106) to market-ready brands: LX Ultra, LX Pro, and LX Max.
- Server Focus: The LX Ultra flagship targets data centers with 24GB ECC memory and 24 TFLOPS of FP32 performance.
- Consumer GPU: The LX 7G100 gaming card confirms a 225W power design and a unique triple-fan cooling solution.
Lisuan Tech Finalizes LX Series Branding and Specifications

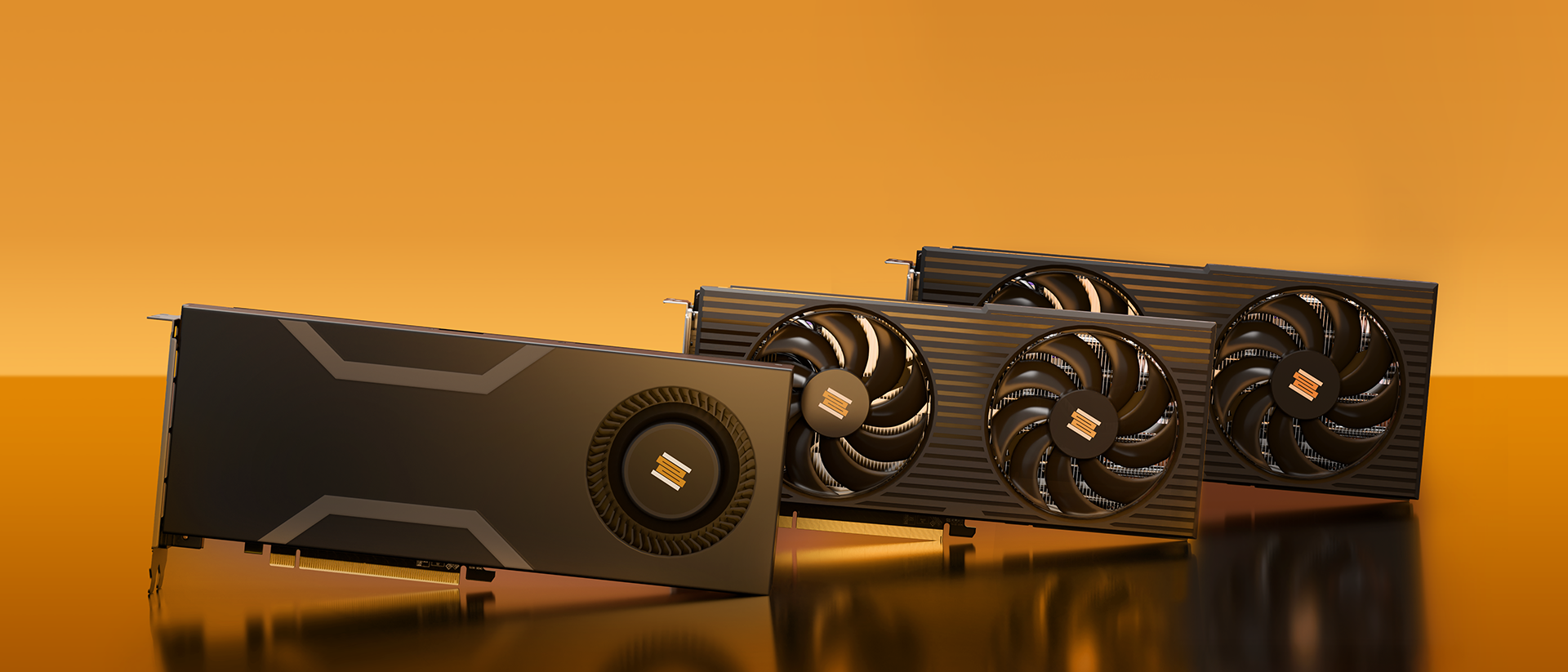

Lisuan Tech has officially updated its product portfolio to clarify the specifications for its upcoming lineup of domestic GPUs. The company’s website now displays comprehensive details for the LX Ultra, LX Pro, and LX Max professional cards, alongside the consumer-focused LX 7G100. This update marks a strategic pivot in branding, retiring the older "7G105" and "7G106" codenames in favor of a unified LX series nomenclature.
The move signals Lisuan’s intent to compete directly in the Chinese GPU market, segmenting its hardware into distinct categories for server infrastructure, professional workstations, and consumer gaming. The updated specifications provide a clearer picture of the performance targets for these domestic graphics solutions.
LX Ultra, Pro, and Max: Targeting Servers and Workstations
The professional stack is now clearly defined, with the LX Ultra positioned as the flagship server-grade solution. Lisuan lists the card with 24GB of GDDR6 memory featuring ECC (Error Correction Code) support, a critical requirement for enterprise stability. Performance metrics point to a high-throughput device, capable of up to 24 TFLOPS of FP32 throughput, 192 GP/s pixel fill rate, and 384 GT/s texture fill rate.
LX Ultra: The Data Center Contender
Designed for rack-style all-in-one systems, the LX Ultra emphasizes density and security. Key specs include:
- Virtualization: Support for 16-way virtual GPU (vGPU) configurations.
- Video Processing: 16x 1080p60 decode and 8x 1080p60 encode streams simultaneously.
- Security: Integrated confidential computing protection, data encryption, and secure display features.
- Cooling: Blower-style fan for server chassis airflow optimization.
LX Pro and LX Max: Workstation Powerhouses
Sitting below the Ultra are the LX Pro and LX Max, tailored for display-attached workstations. Both models feature a robust output configuration with four DisplayPort 1.4a connectors, supporting 8K60 HDR and AMD FreeSync with DSC.
- LX Pro: Features 24GB GDDR6 memory, targeting high-end visualization and content creation.
- LX Max: Offers 12GB GDDR6 memory, serving as a mid-range workstation option.
Both cards support modern graphics APIs including DirectX 12, Vulkan 1.3, OpenGL 4.6, and OpenCL 3.0. They utilize axial active cooling solutions, distinguishing them from the blower-style Ultra.
LX 7G100 Gaming Card: Triple-Fan Design Confirmed

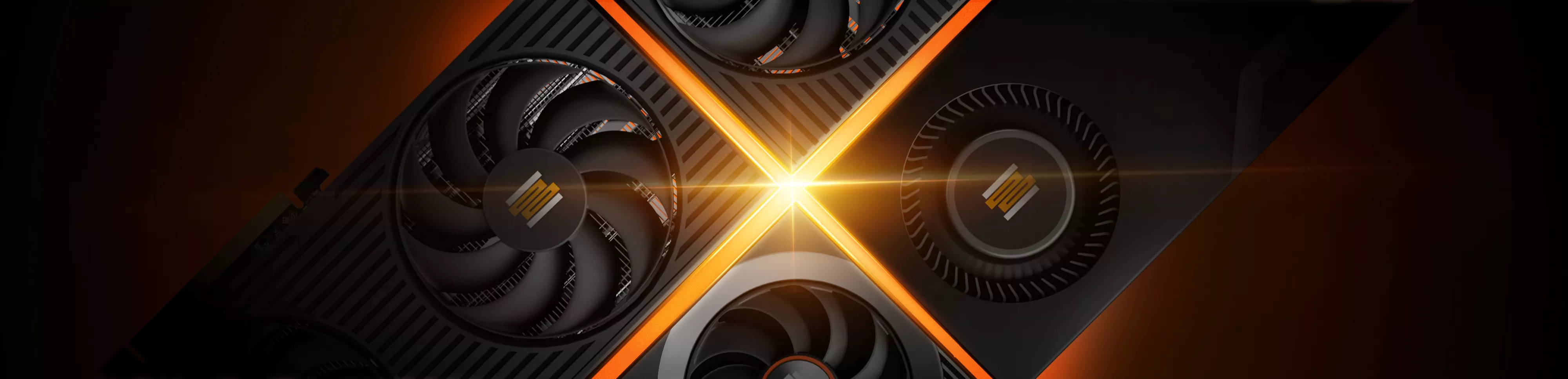

On the consumer front, the LX 7G100 branding solidifies Lisuan’s entry into the discrete gaming market. New renders of the card reveal a sophisticated cooling solution that defies initial impressions. While earlier renders suggested a blower-style shroud, the latest imagery reveals a triple-fan design with two fans concealed beneath the shroud and heatsink structure.
Confirmed Specifications for LX 7G100
While full clock speeds remain undisclosed, the physical and architectural attributes are now firmer:
- Memory: 12GB GDDR6.
- Power: 225W board power via a single 8-pin connector.
- Interface: PCIe 4.0 x16.
- Rendering Units: 192 TMUs (Texture Mapping Units) and 96 ROPs (Render Output Units).
This configuration suggests a card aimed at the mainstream performance segment, potentially rivaling mid-range offerings from established competitors in the domestic market.
Official Specification Comparison
The following table consolidates the updated official specifications for the Lisuan LX Series.
| Feature | LX 7G100 | LX Ultra | LX Pro | LX Max |
|---|---|---|---|---|
| Category | Consumer Gaming | Professional Server | Professional Workstation | Professional Workstation |
| Memory Capacity | 12GB | 24GB | 24GB | 12GB |
| Memory Type | GDDR6 | GDDR6 (ECC) | GDDR6 | GDDR6 |
| FP32 Performance | N/A | Up to 24 TFLOPS | N/A | N/A |
| Display Outputs | N/A | - | 4× DP 1.4a | 4× DP 1.4a |
| Video Decode | HEVC 8K60 | 16× 1080p60 | HEVC 8K60 | HEVC 8K60 |
| Cooling | Triple-Fan Axial | Blower | Axial Active | Axial Active |
| Target Platform | PC / Consumer | Server / Rackmount | Workstation | Workstation |
Source: Lisuan Tech Official Product Pages. "N/A" indicates data not yet published by the manufacturer.
Analysis: The Missing Pieces
Despite the updates, Lisuan remains guarded about specific chip-level configurations. Critical metrics such as GPU clock speeds, memory bus width, and memory bandwidth are absent from the current spec sheets. Additionally, the lack of "board power" figures for the professional cards leaves a gap in understanding the total cost of ownership for enterprise deployments.
However, the branding evolution from "7G" internal codes to the "LX" product lines demonstrates a maturation of Lisuan's marketing strategy. By clearly differentiating between Server (Ultra) and Workstation (Pro/Max) use cases, Lisuan is positioning itself to capture specific verticals in the domestic Chinese hardware market.
